Stellar 32

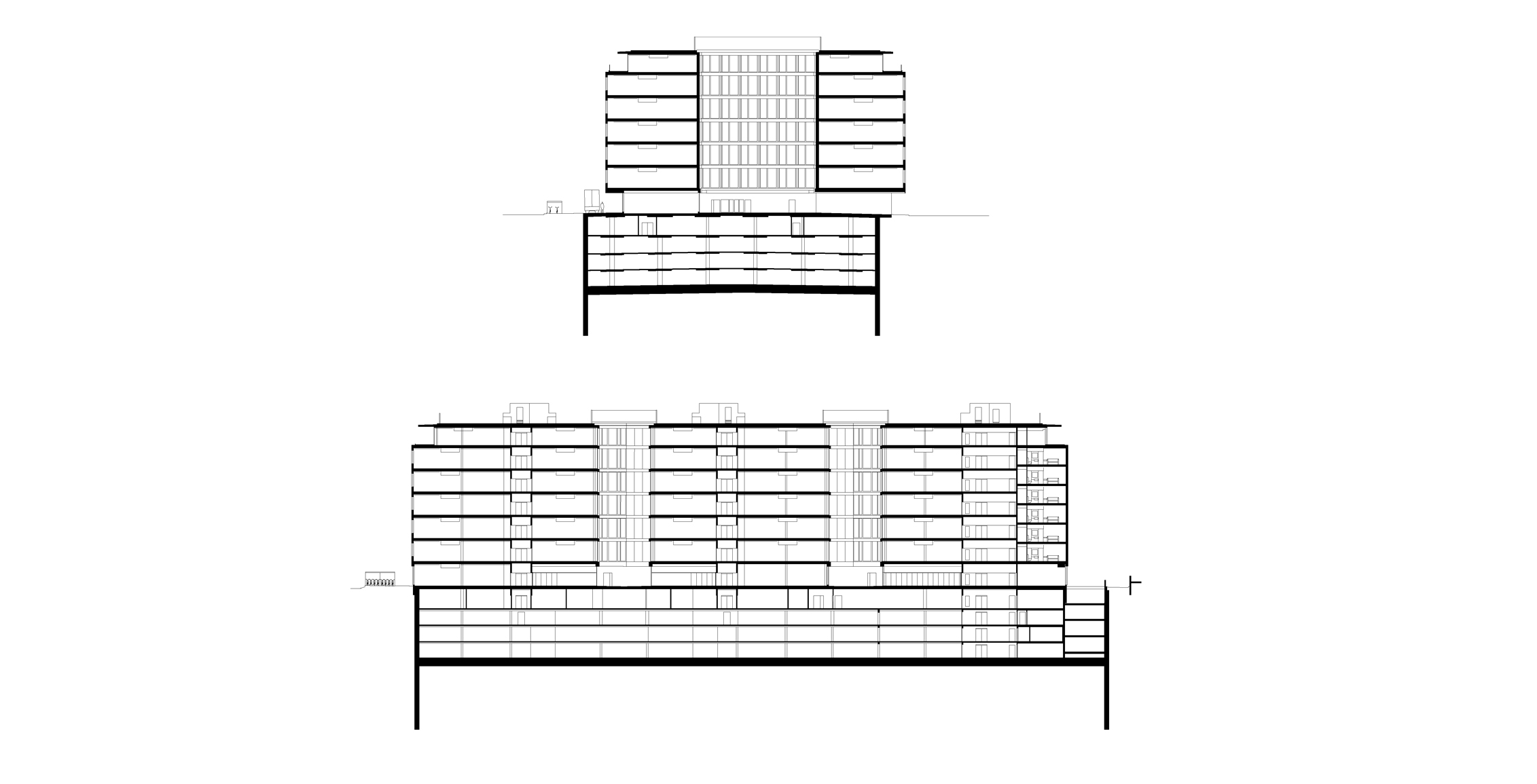

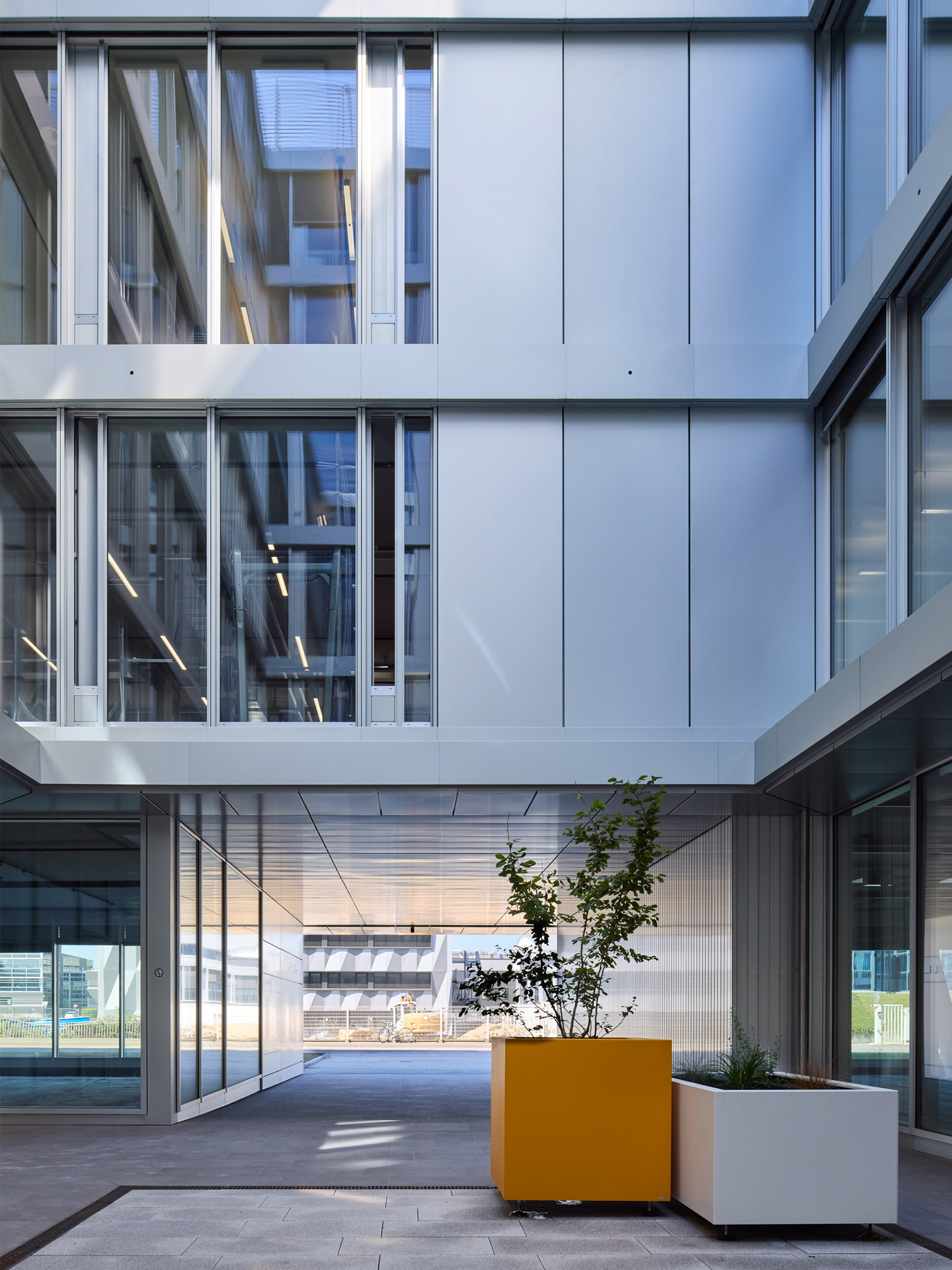

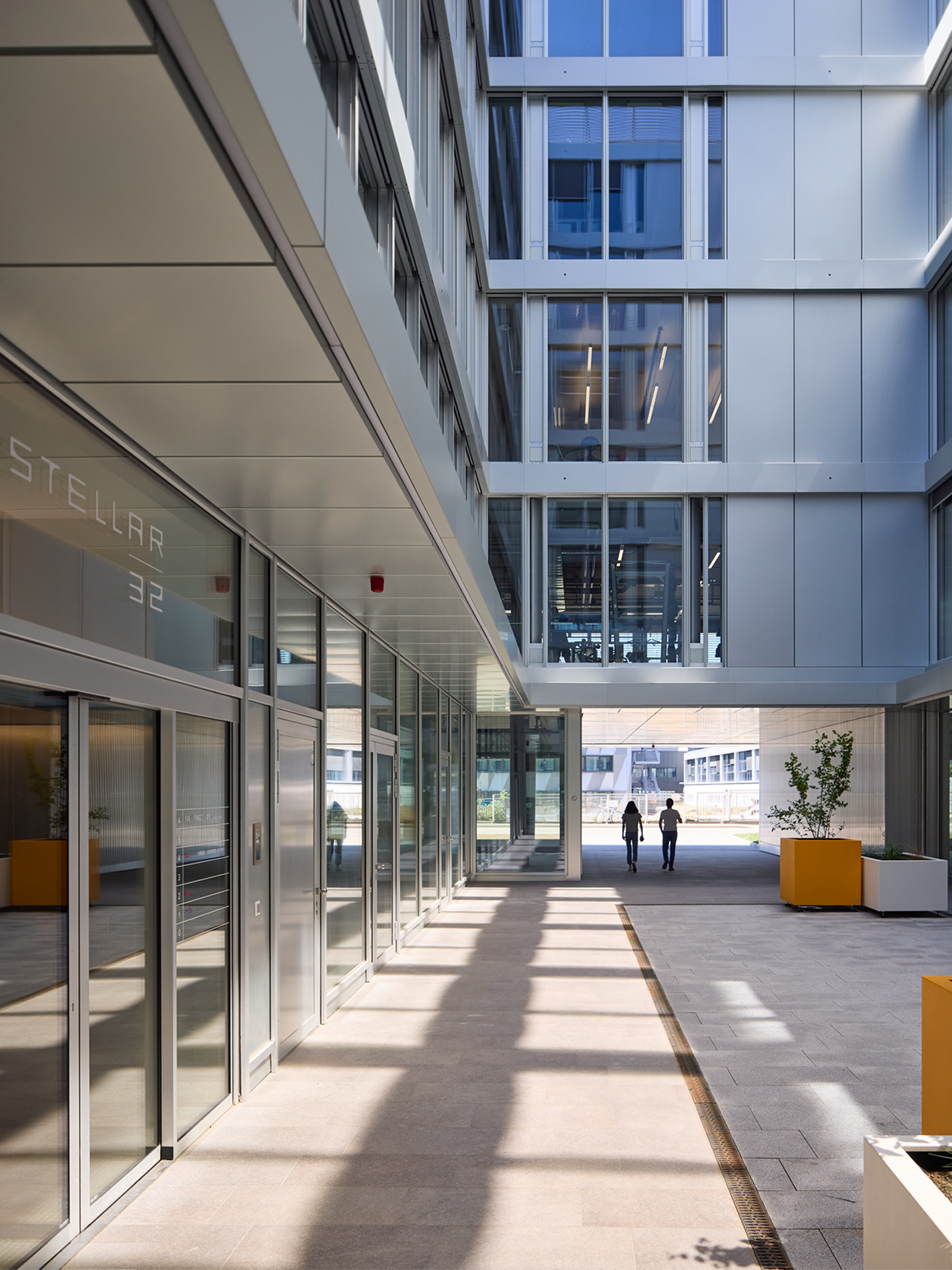

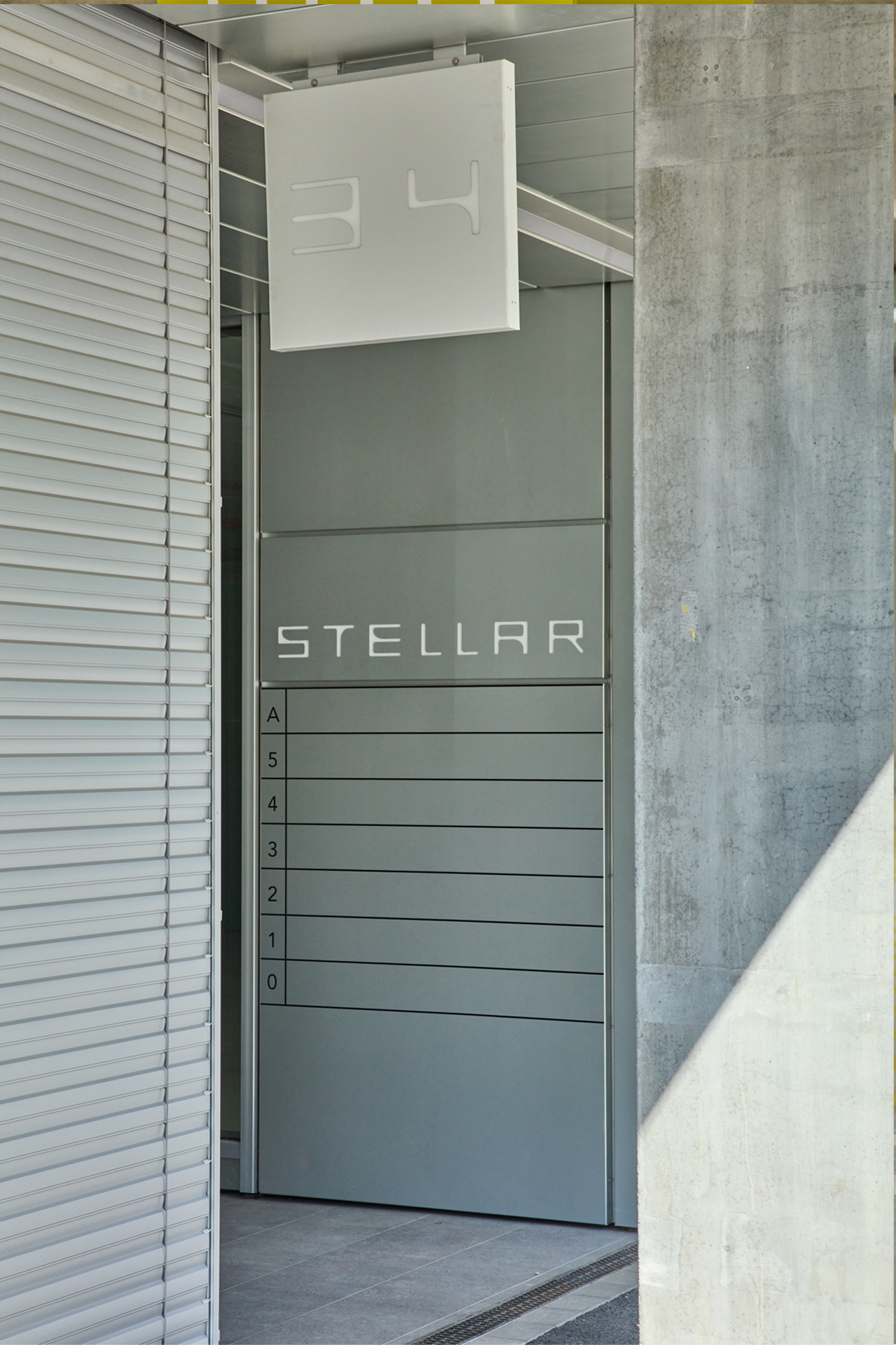

The building, behind its unified facade, is subdivided into three sectors linked by patios, three independent but connectable volumes, accessible from three separate entrances giving access to the four underground levels and the seven above-ground levels.

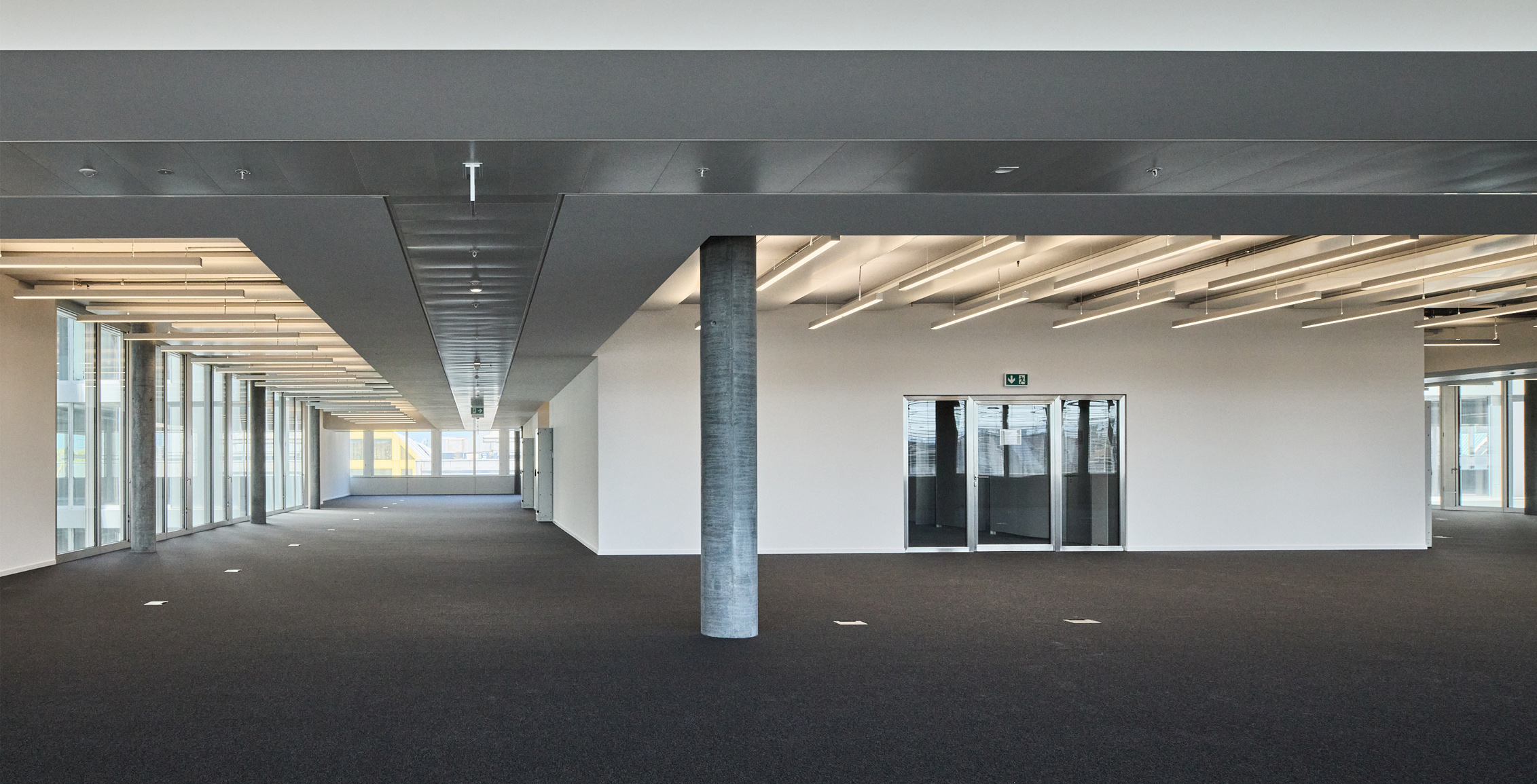

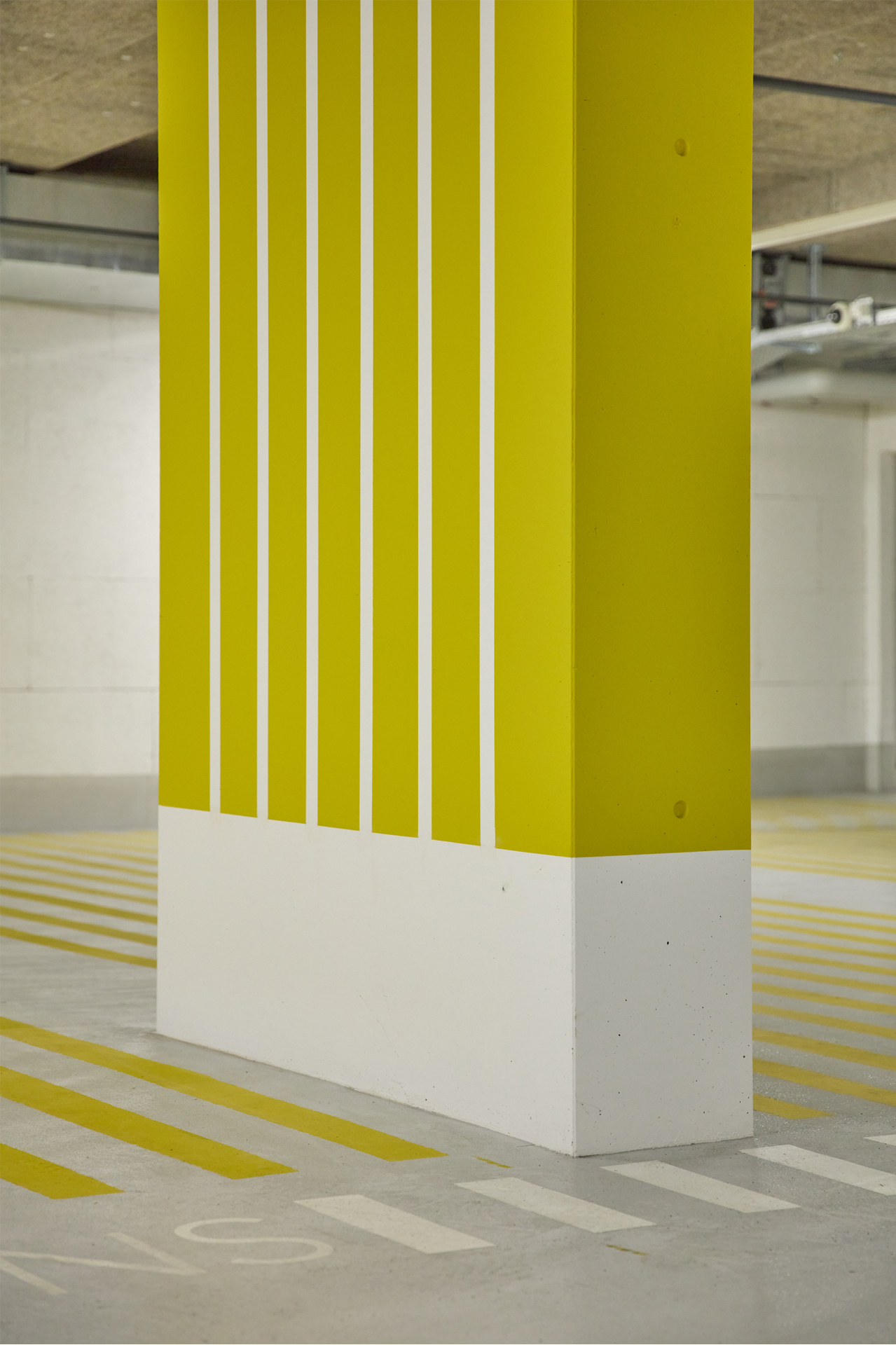

The 30,000 m2 of rental space is modular, ranging from 250 m2 of office space to 4,250 m2 of floor space. A net height clearance of 3.4 metres offers great flexibility of occupation and use. The basements house 574 parking spaces and 62 two-wheel spaces, as well as 3,125 m2 of storage and technical rooms.

Stellar 32 incorporates a three-star hotel with 118 rooms, primarily for business clients, which offers a long-stay concept with available services. A restaurant with its terrace and a fitness centre complete the mix of uses, contributing to the creation of a unique public services centre in the area.

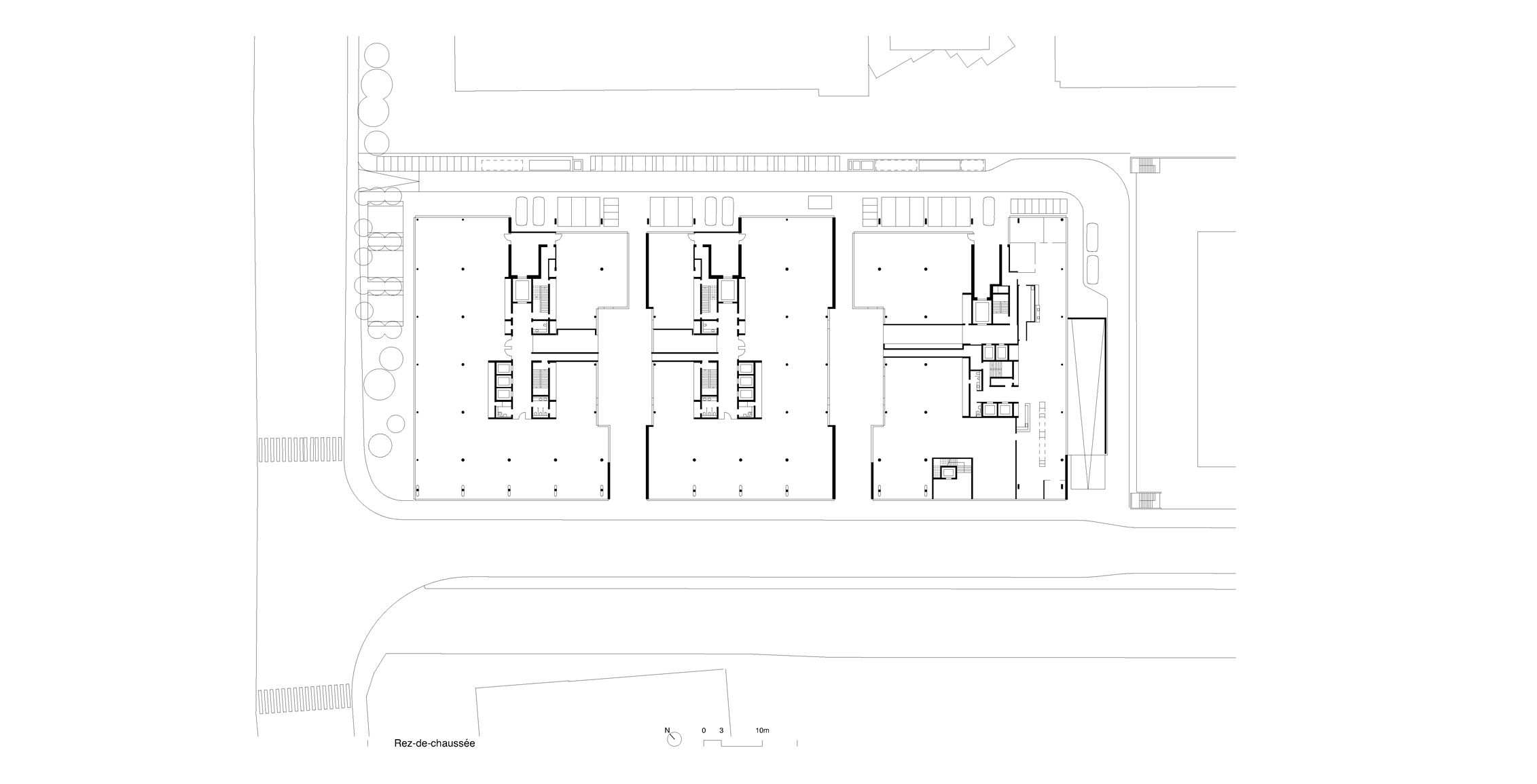

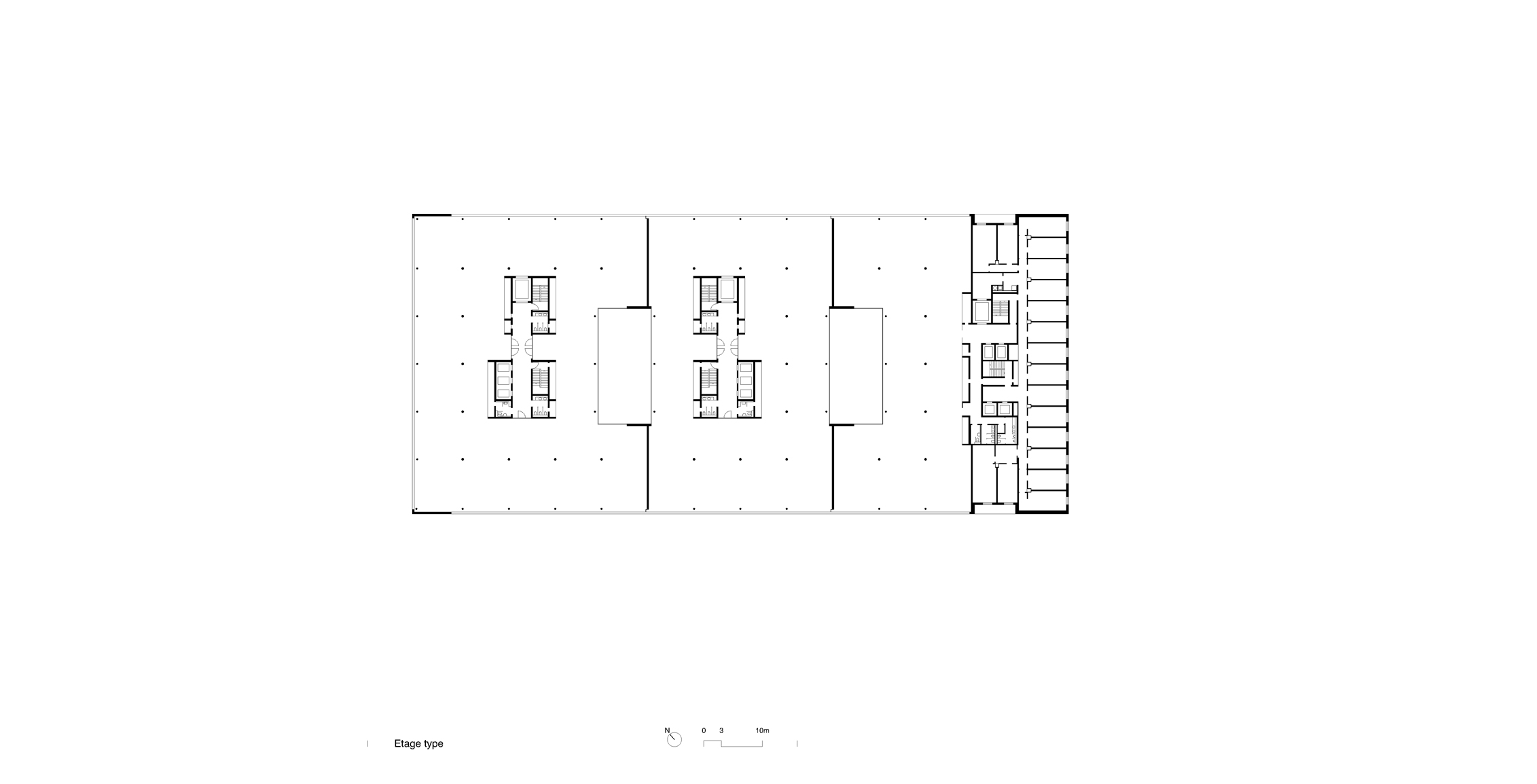

The construction system consists of lightened concrete slabs and a 8 meter structural grid. The compact vertical communication cores are placed in the centre of the buildings to free up a maximum of flexible surfaces. Their position allows for the distribution of 4 rental lots per floor directly from each lobby. The cores organize lifts, staircases, sanitary blocks and all the technical ducts. The latter being accessible for transformations from inside the cores, without disturbing the tenants. The building is Minergie-certified and draws its energy from district heating.

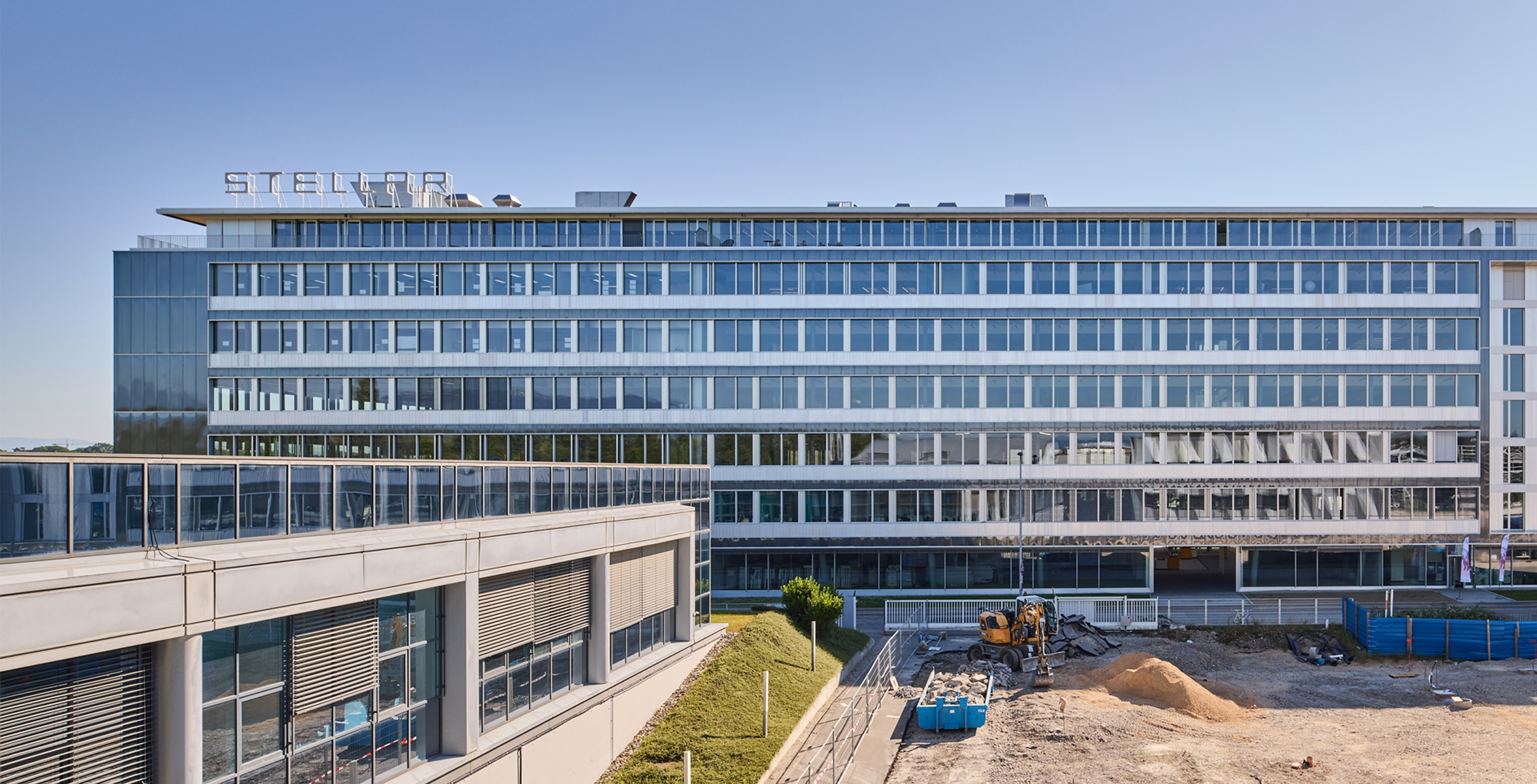

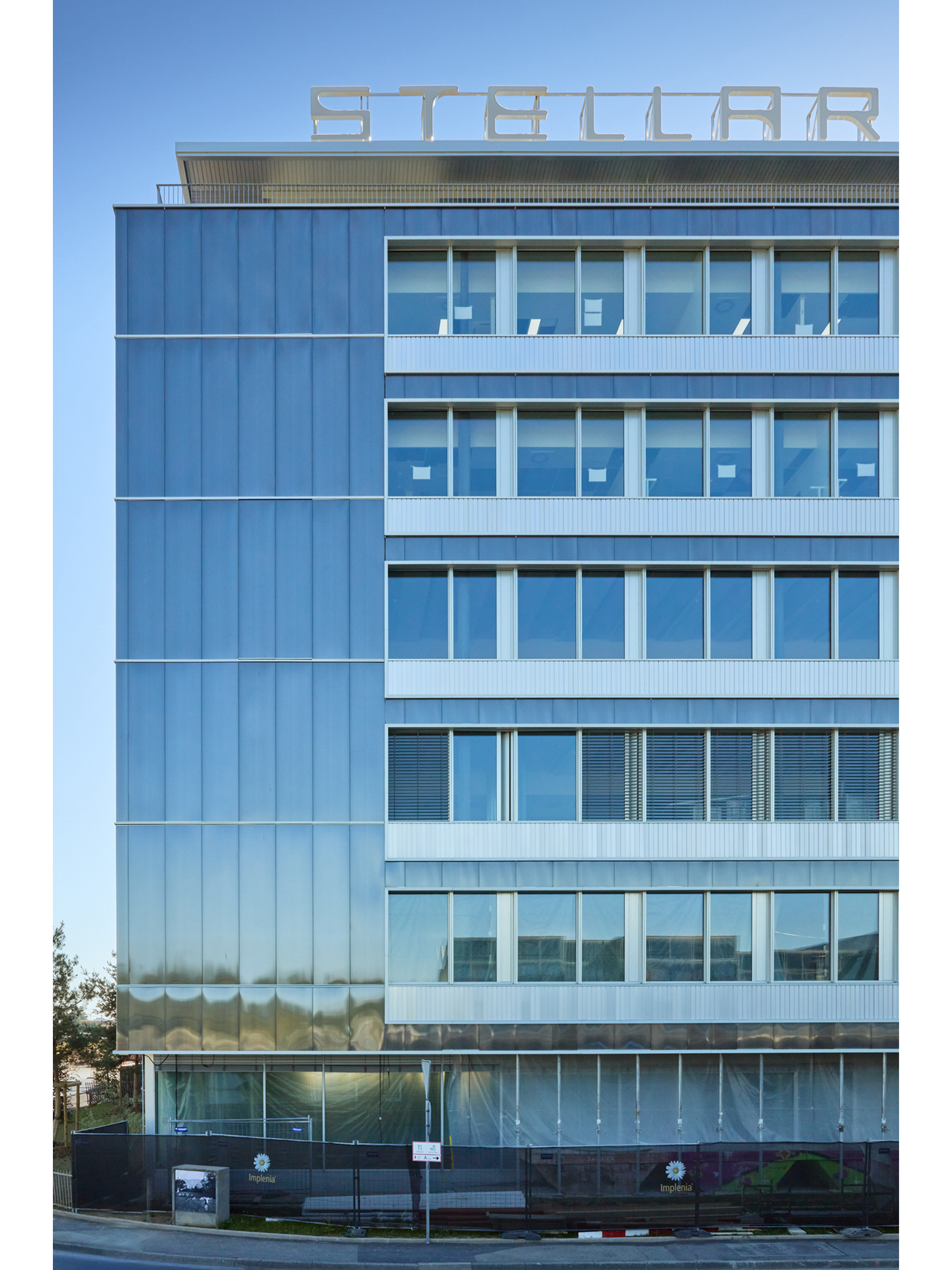

The design of the facades seeks to unify a complex of three buildings with an uneven number of levels, and to restore the elegance of a large building, without expressing one purpose at the expense of another.

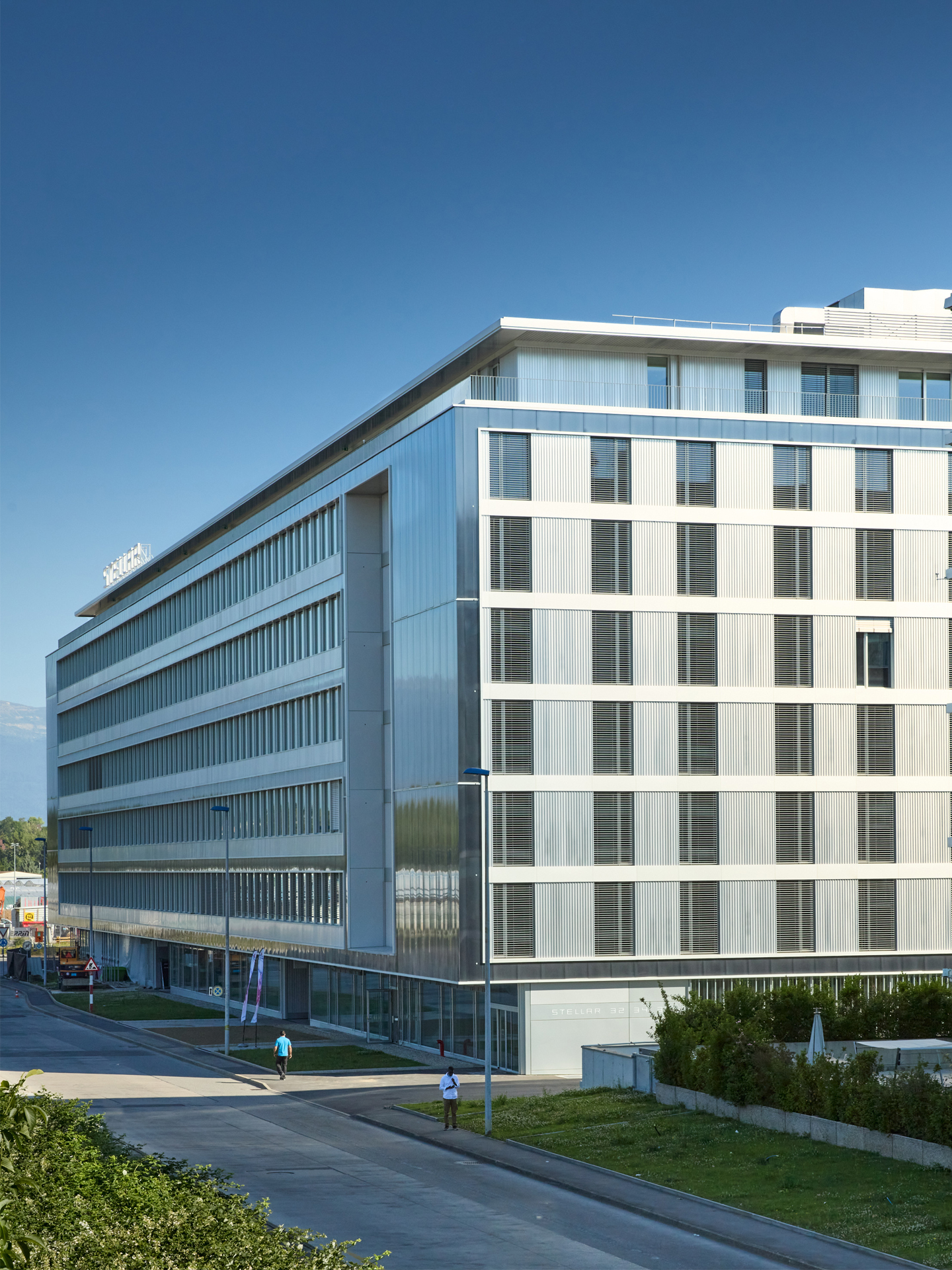

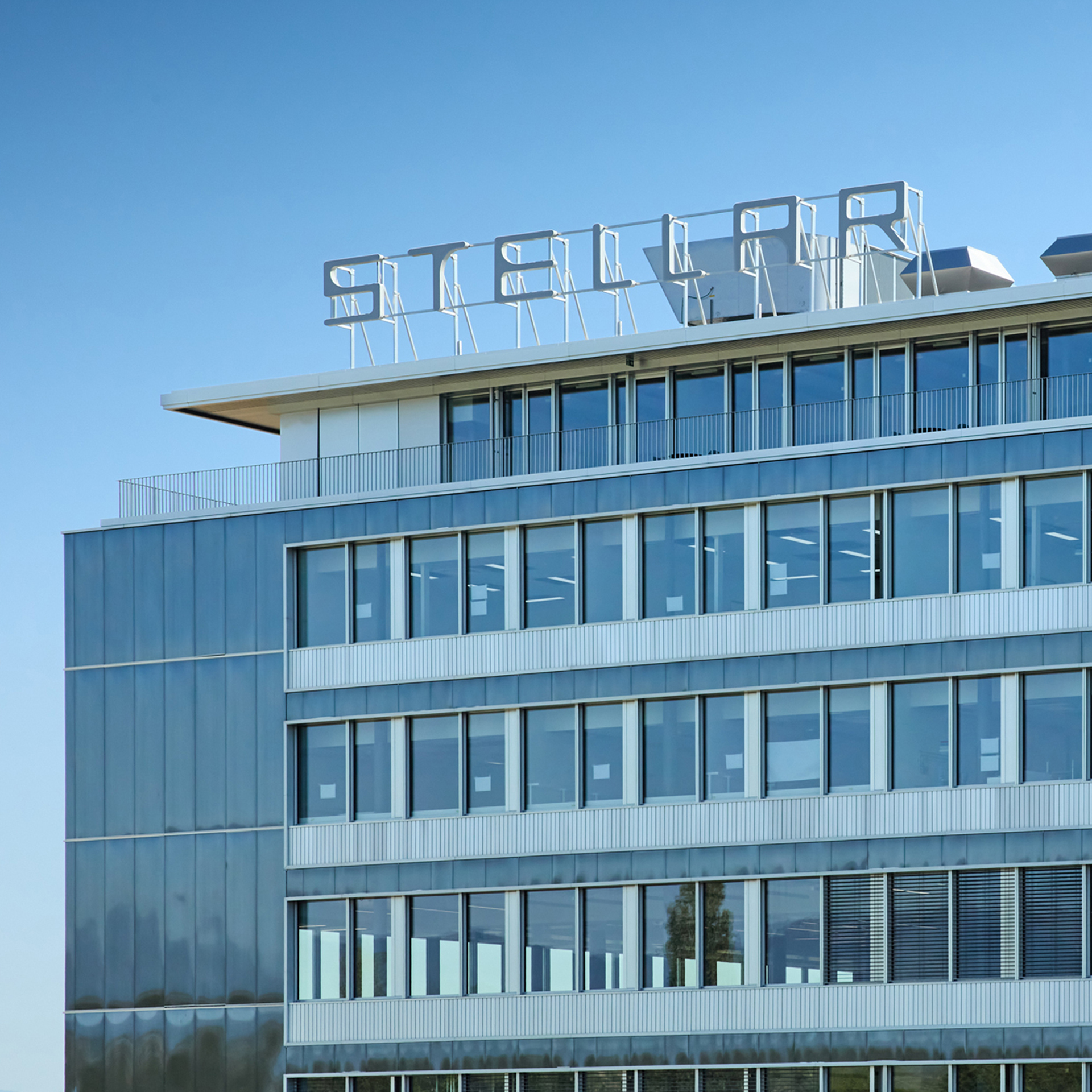

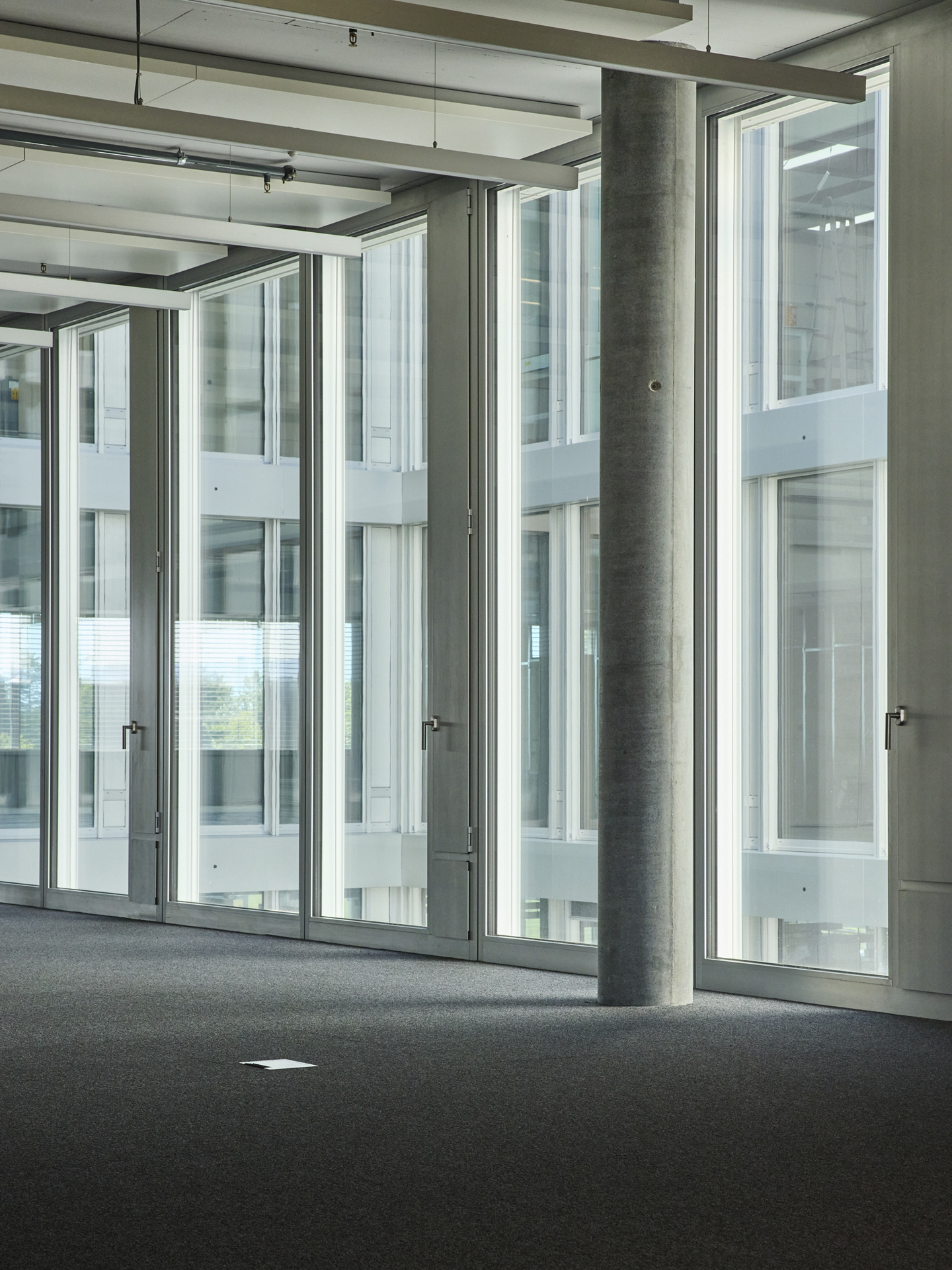

The sparkling materiality of Stellar 32 reflects the values that animate it. Its cladding combines the lightness of polycarbonate with the refinement of natural aluminium. High triple-glazed windows in horizontal bands guarantee a deep penetration of natural light. Openings provide natural ventilation in all the rooms.

Stellar 32

Project
Stellar 32
Program
Mixed-use building: offices, hotel, sports centre.
status
Built
location
Suisse, Genève
year
2014 - 2020
Client
M3 Real Estate SA
Floor area
60760 m2
Team
Lausanne
Ignacio Dahl Rocha, Kenneth Ross, Baris Kansu, Mario Sousa, Marc Lopez Gastaldo , Alberto Garmendia Fernandez, Federico Almárcegui
certifications
Minergie
Collaborators
Domulor Architectes SA
General
contractor
Hestia Constructions SA
Structural
engineer
Ingeni SA Genève
Geotechnical
GADZ SA
HVAC
engineer
Weinmann Energies SA
Sanitary
engineer
Martin & Doy. Ingénieurs conseils Sàrl
Electrical
engineer
DSSA Ingénieurs Conseils SA
Safety
engineer
Securitas SA - SBIS
Acoustical
consultant
AAB- J.Stryjenski & H. Monti SA
Others
consultants
Coordinateurs sécurité : 3Conseils, Rogerio Fernandes. Ing. Environnement : Alterego Concept SA.
credits
Jeremy Bierer
Stellar 32

Stellar 32

2014 - 2020 · Suisse, Genève · Administrative

The Stellar 32 building is located in the industrial zone of Plan-les-Ouates, a rapidly developing sector managed by the Fondation pour les Terrains industriels de Genève (FTI), whose dynamism and prestige have earned it the nickname "Plan-les-Watches" according to the press.


The Stellar 32 project is the result of a first prize competition.
