Route de Berne 46

Route de Berne 46

Project
Route de Berne 46
Program

Office Building

status
Built
location
Suisse, Lausanne
year
2001 - 2005
Client
Pierre Milliet
Floor area
4693 m2
Team
Lausanne

Jacques Richter, Ignacio Dahl Rocha, Kenneth Ross, Baris Kansu, Didier Grisoni, Christophe Gachnang, Frédéric Comby, Jong Jin Park, Nathalie Khelfi

Structural
engineer
RLJ Ingénieurs Conseils SA
Geotechnical
De Cérenville Géotechnique SA
HVAC
engineer
Pierre Chuard Ingénieurs conseils SA
Sanitary
engineer
Michel Diemand
Electrical
engineer
Perrin & Spaeth SA
Landscape
architect
Sylvie Visinand
Others
consultants
Géomètre: Jean-Paul Ferrini
Artist
Gaspard Delachaux
credits
Yves André
Route de Berne 46

Route de Berne 46

2001 - 2005 · Suisse, Lausanne · Administrative

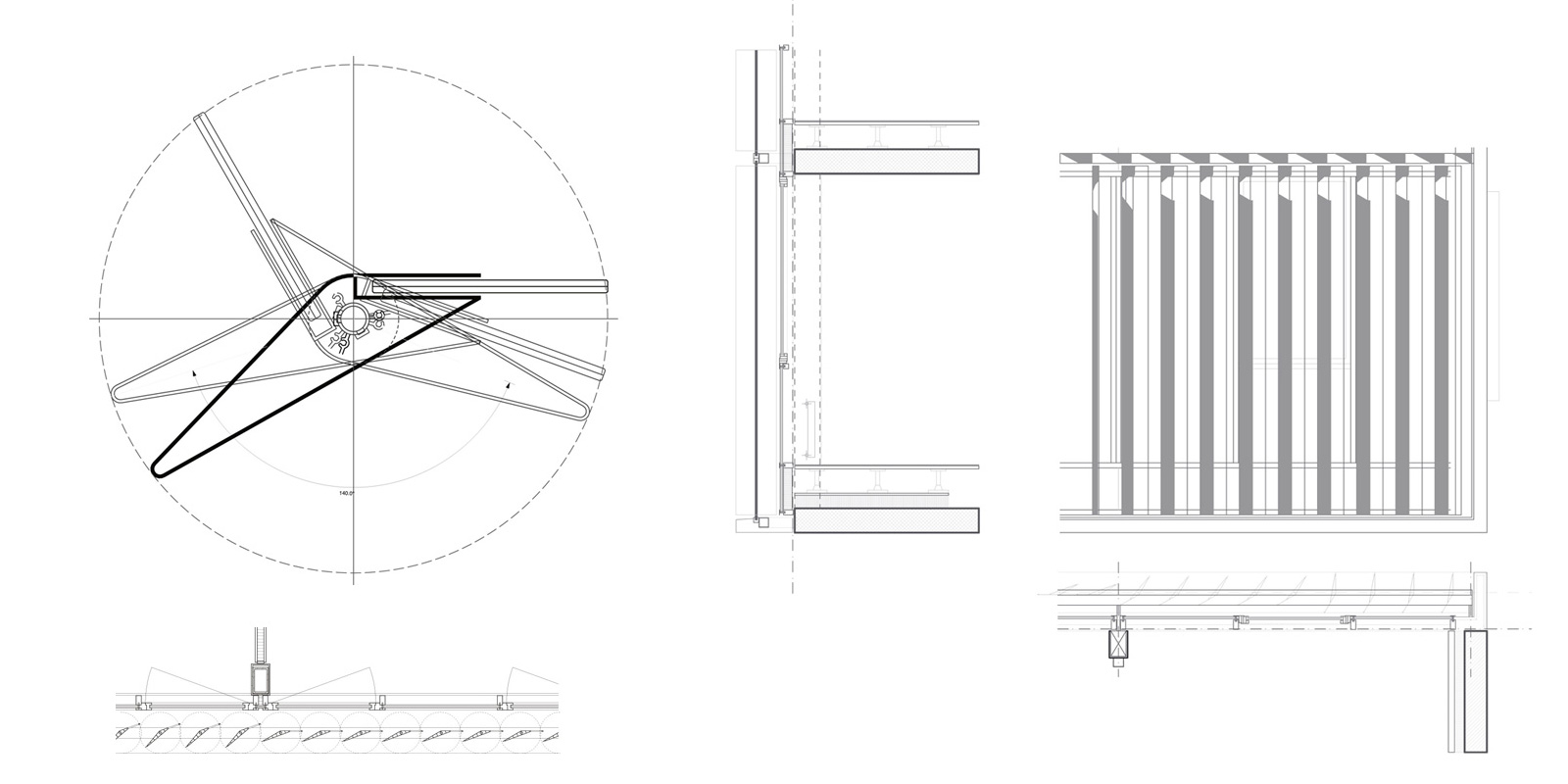

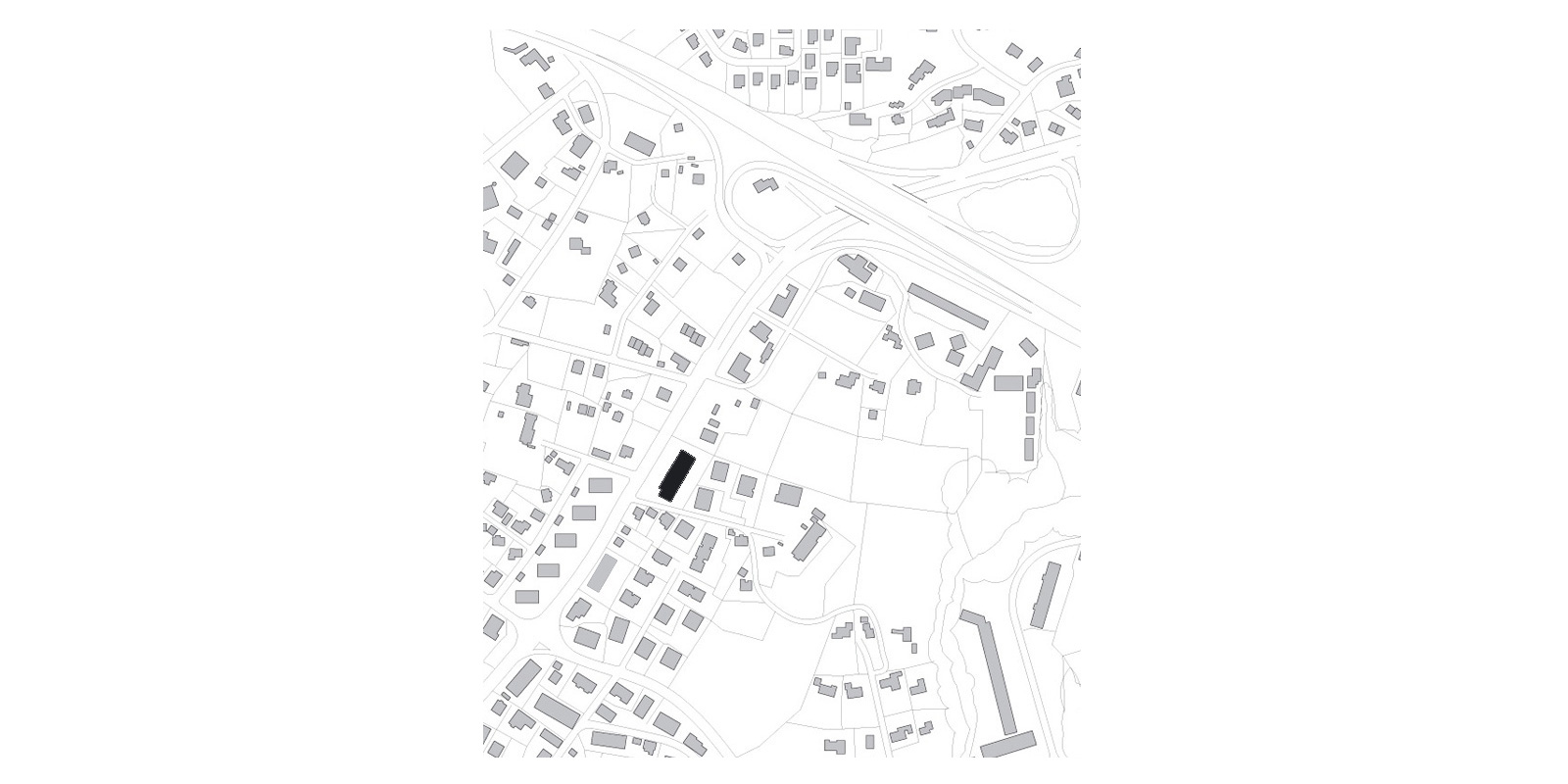

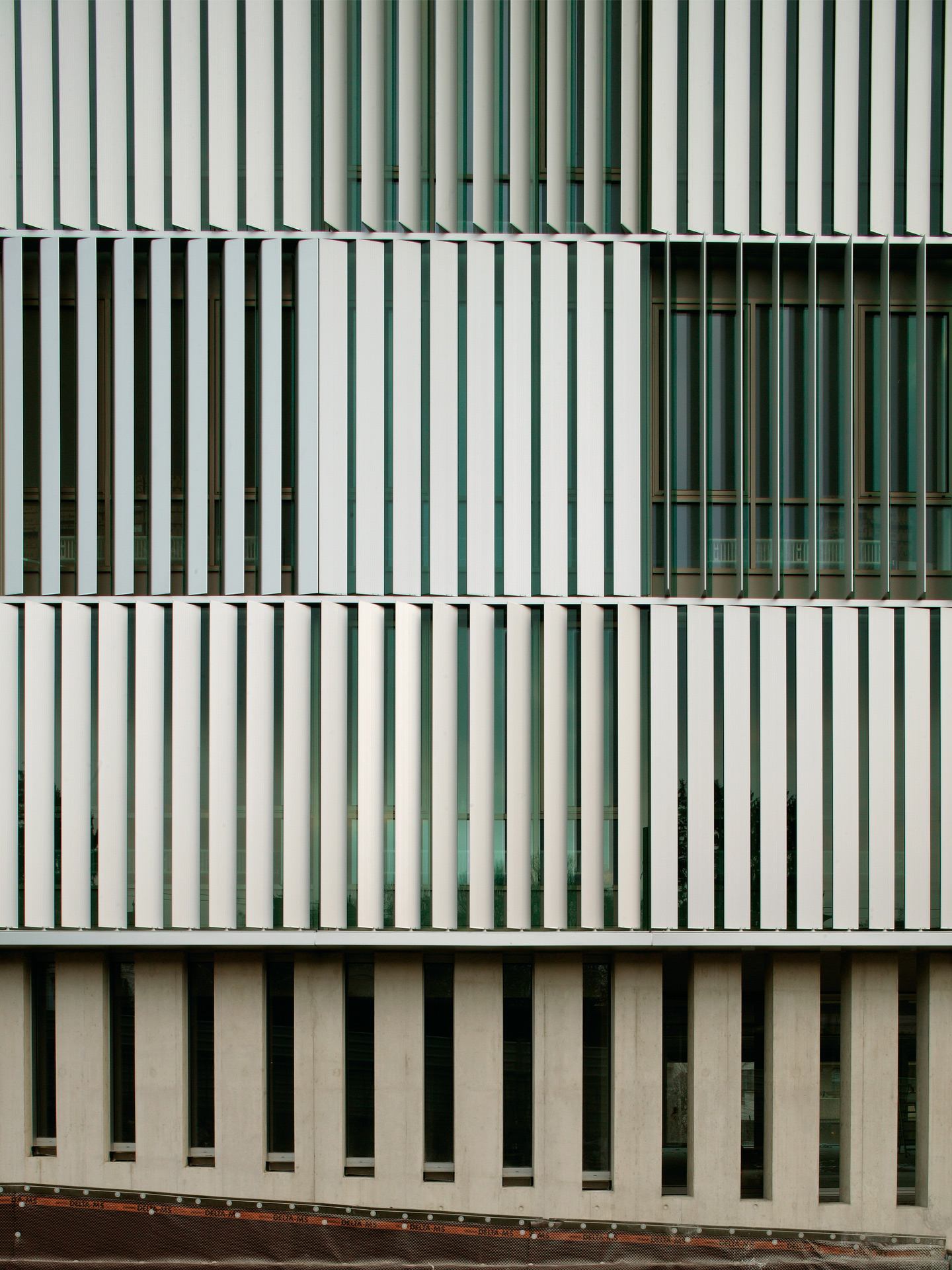

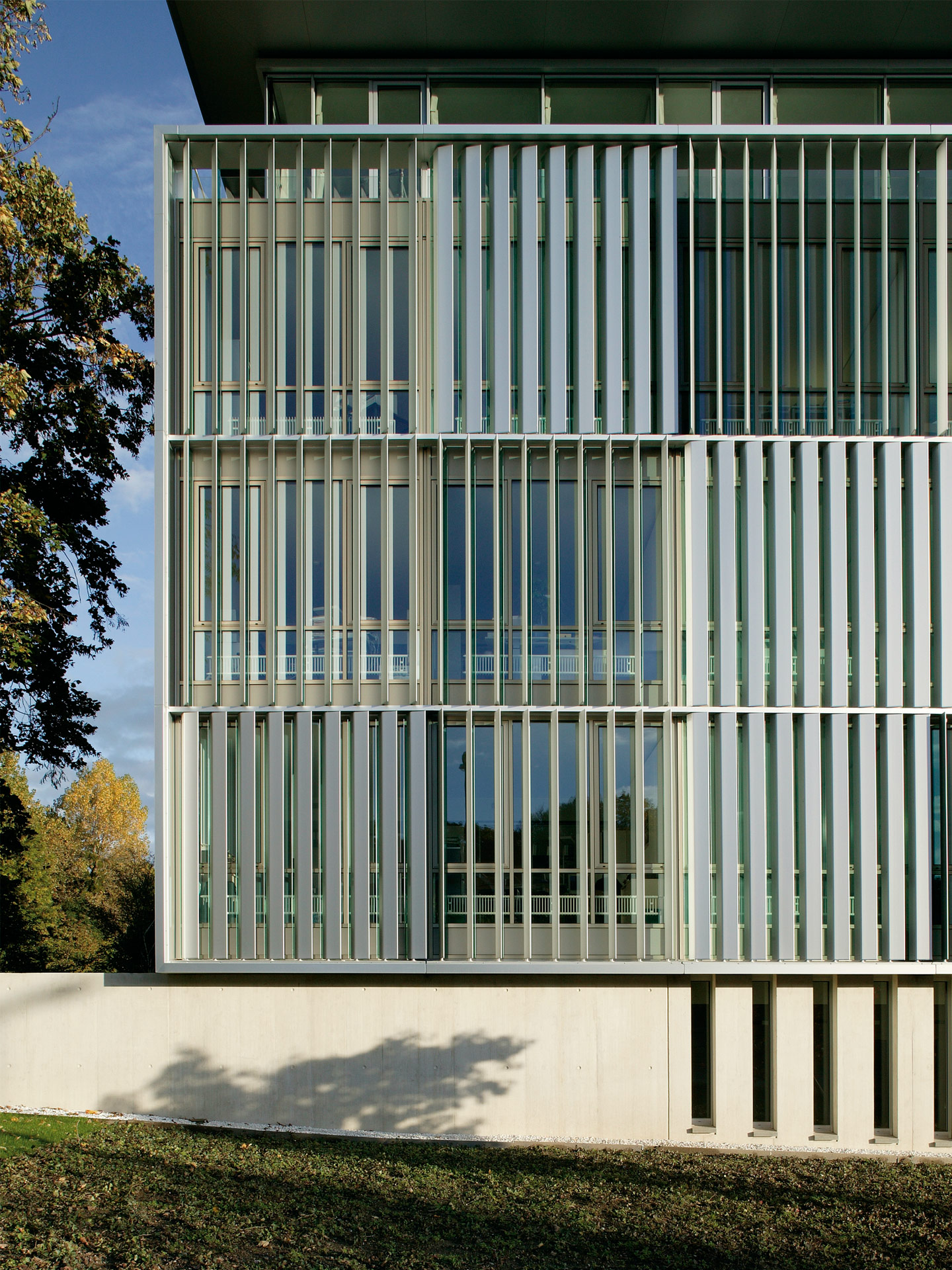

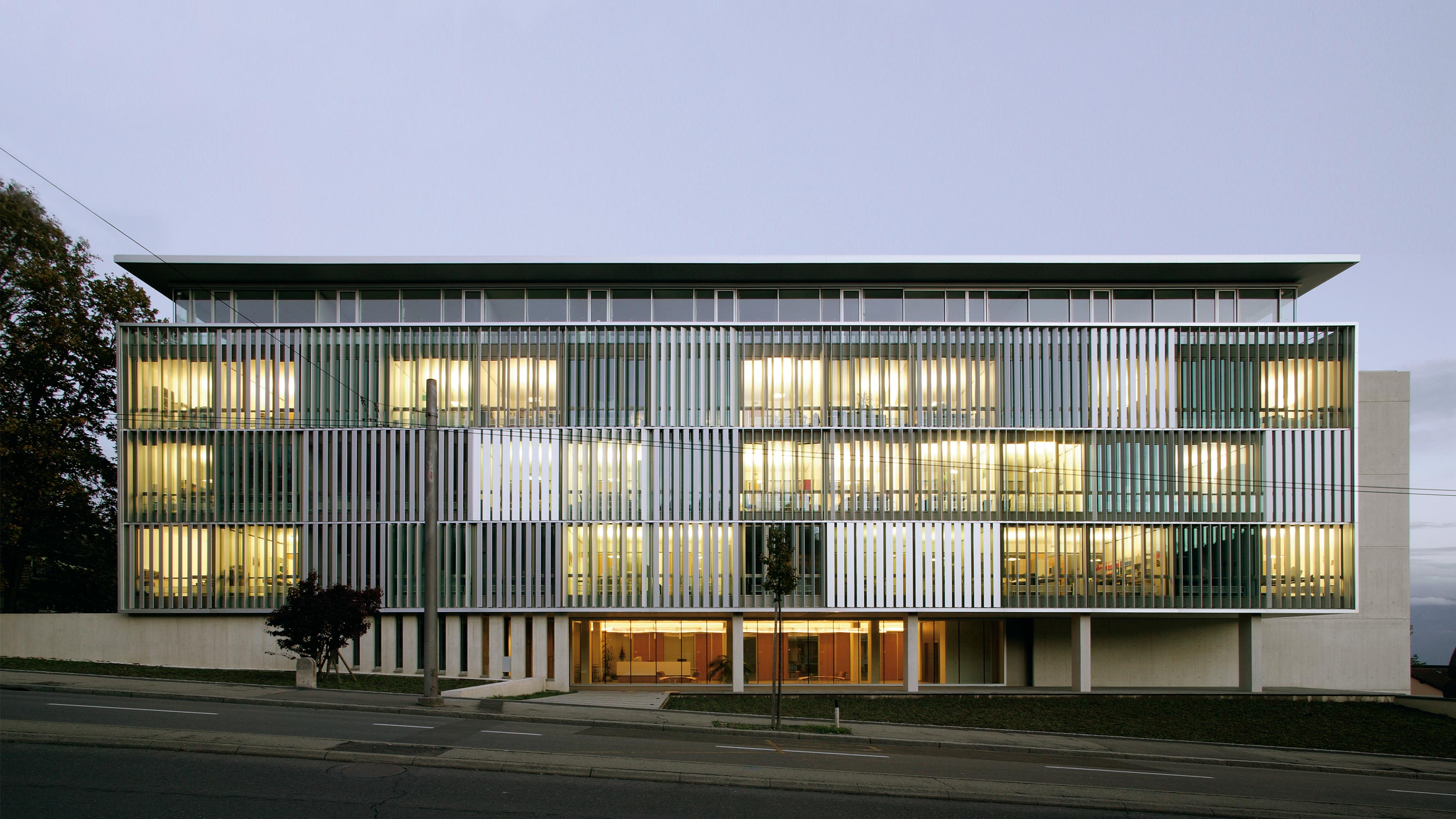

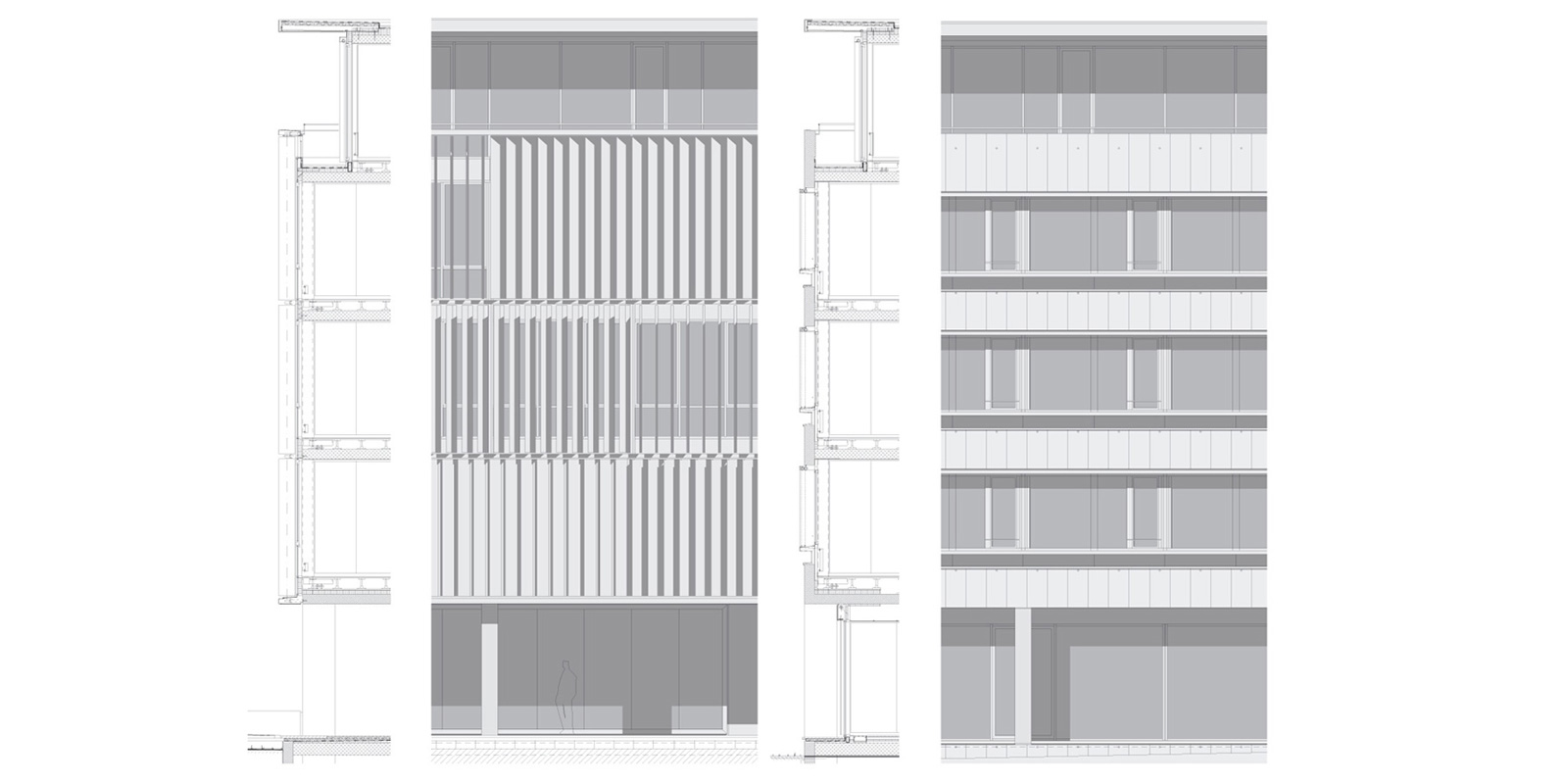

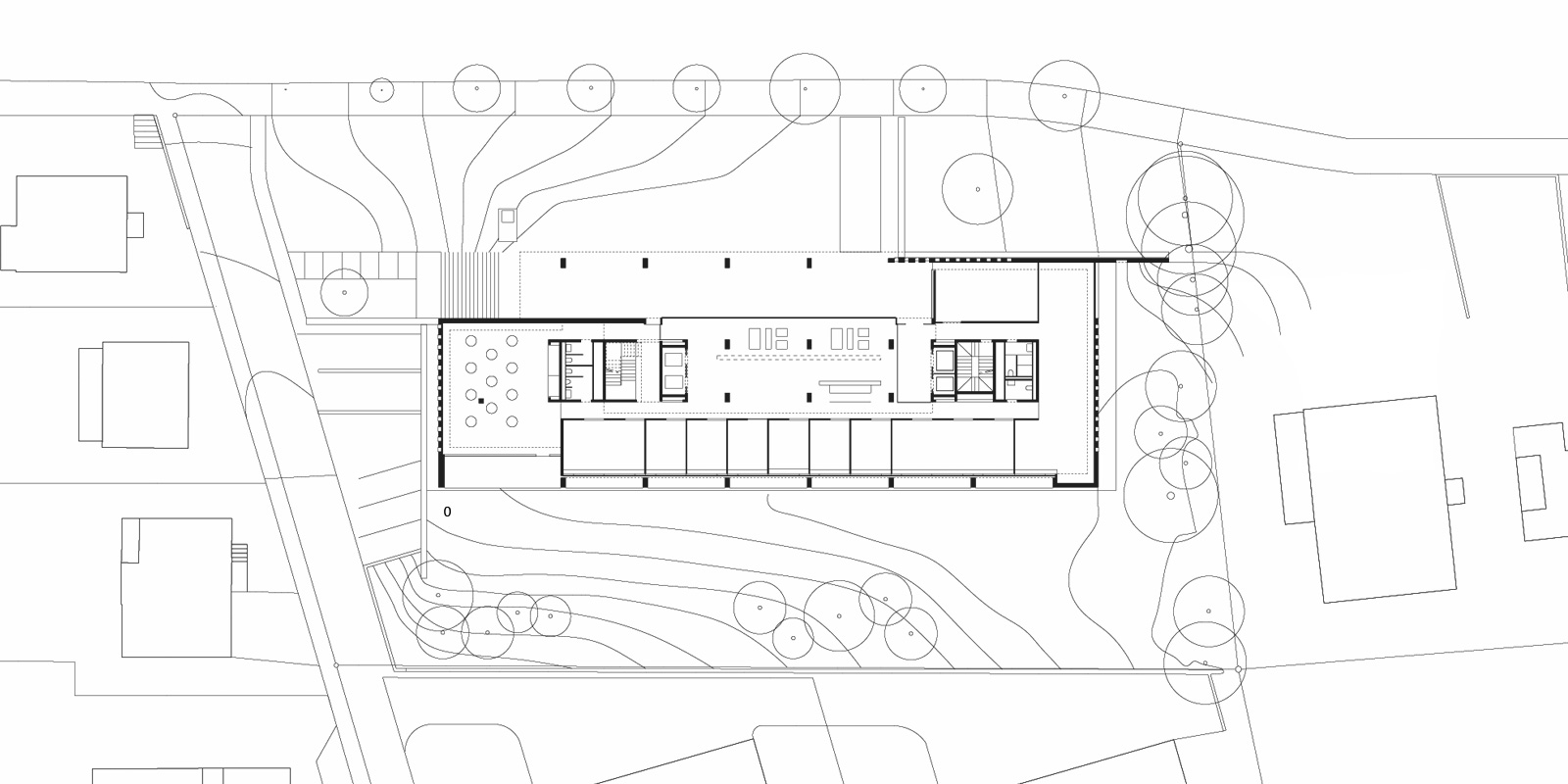

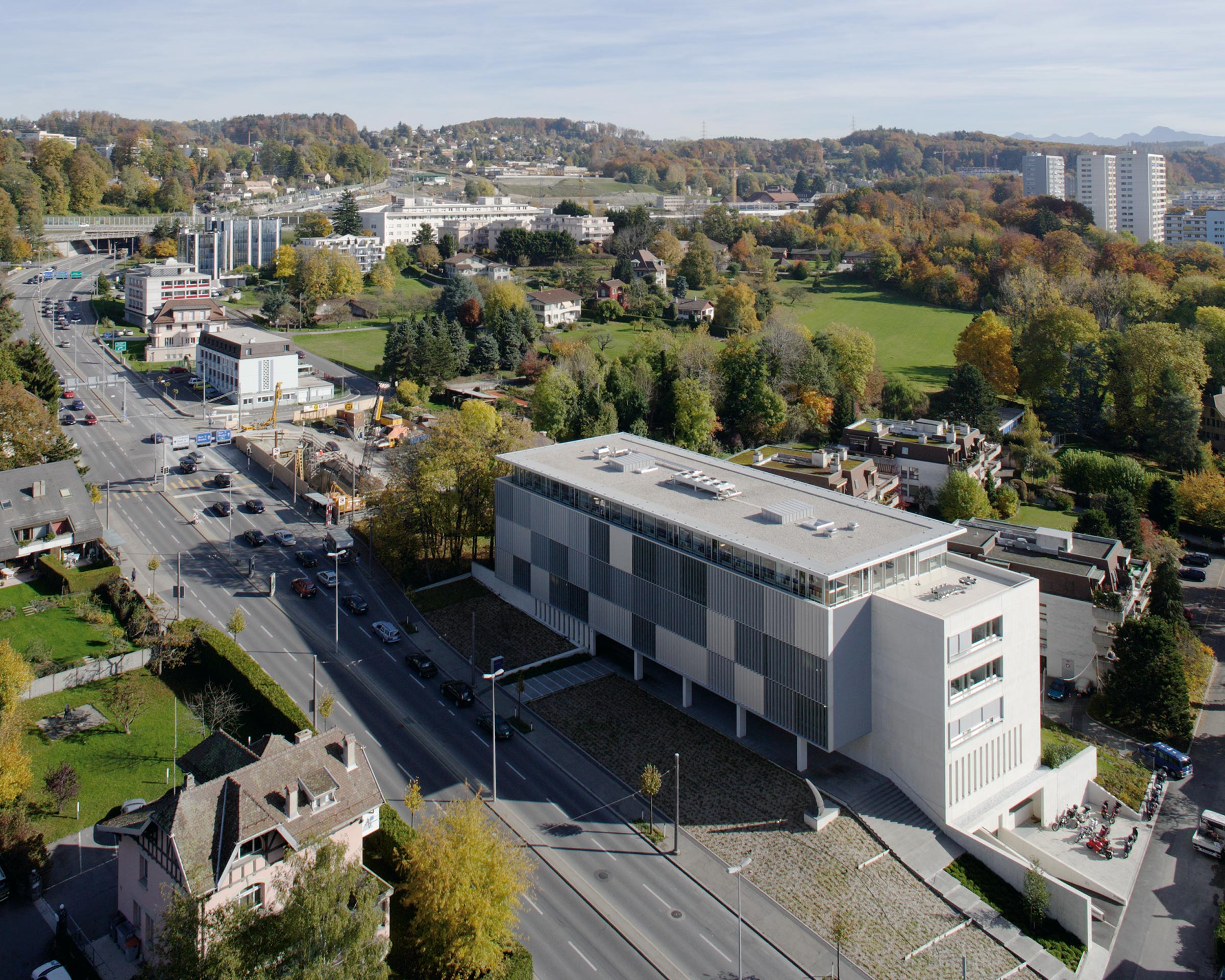

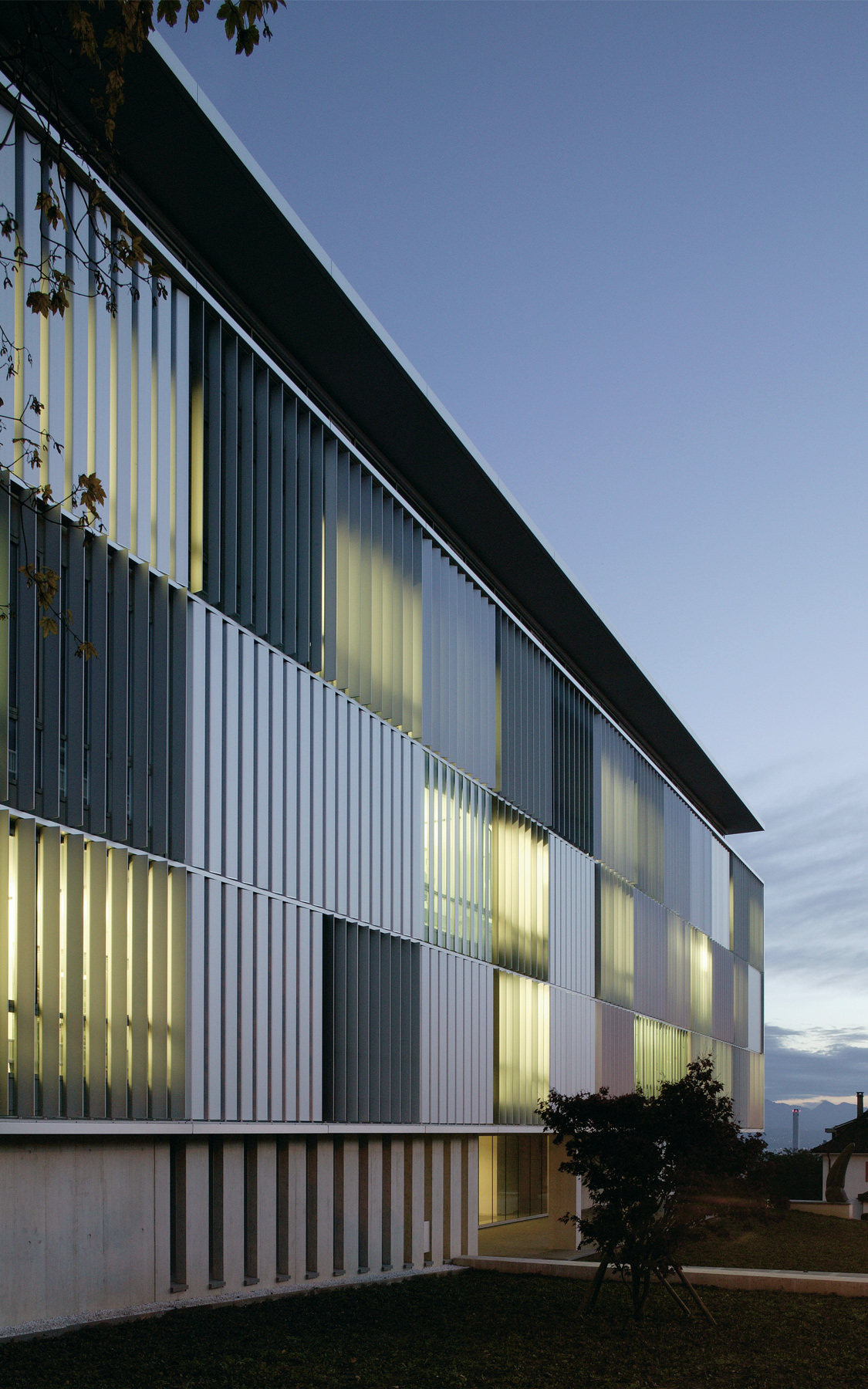

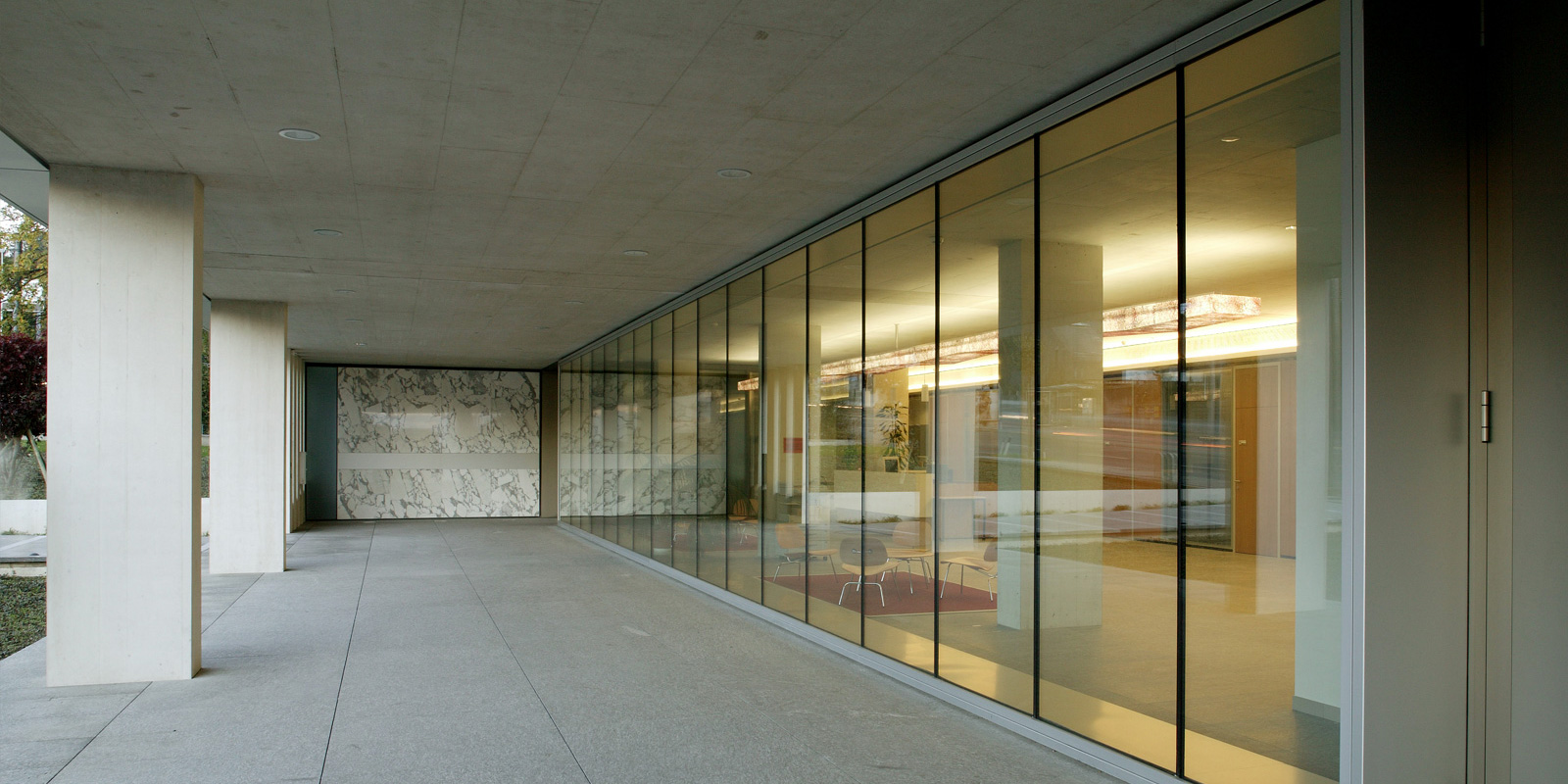

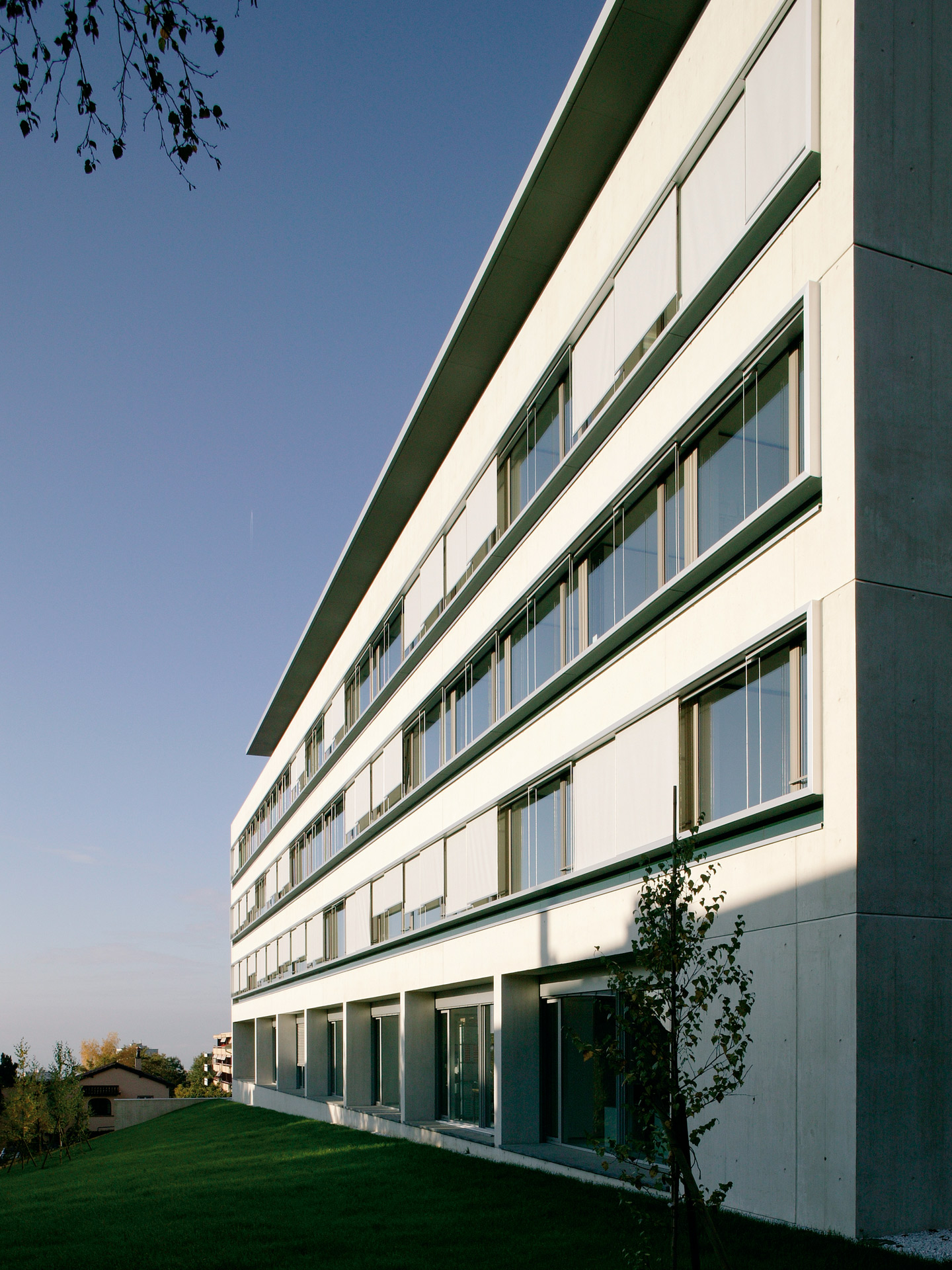

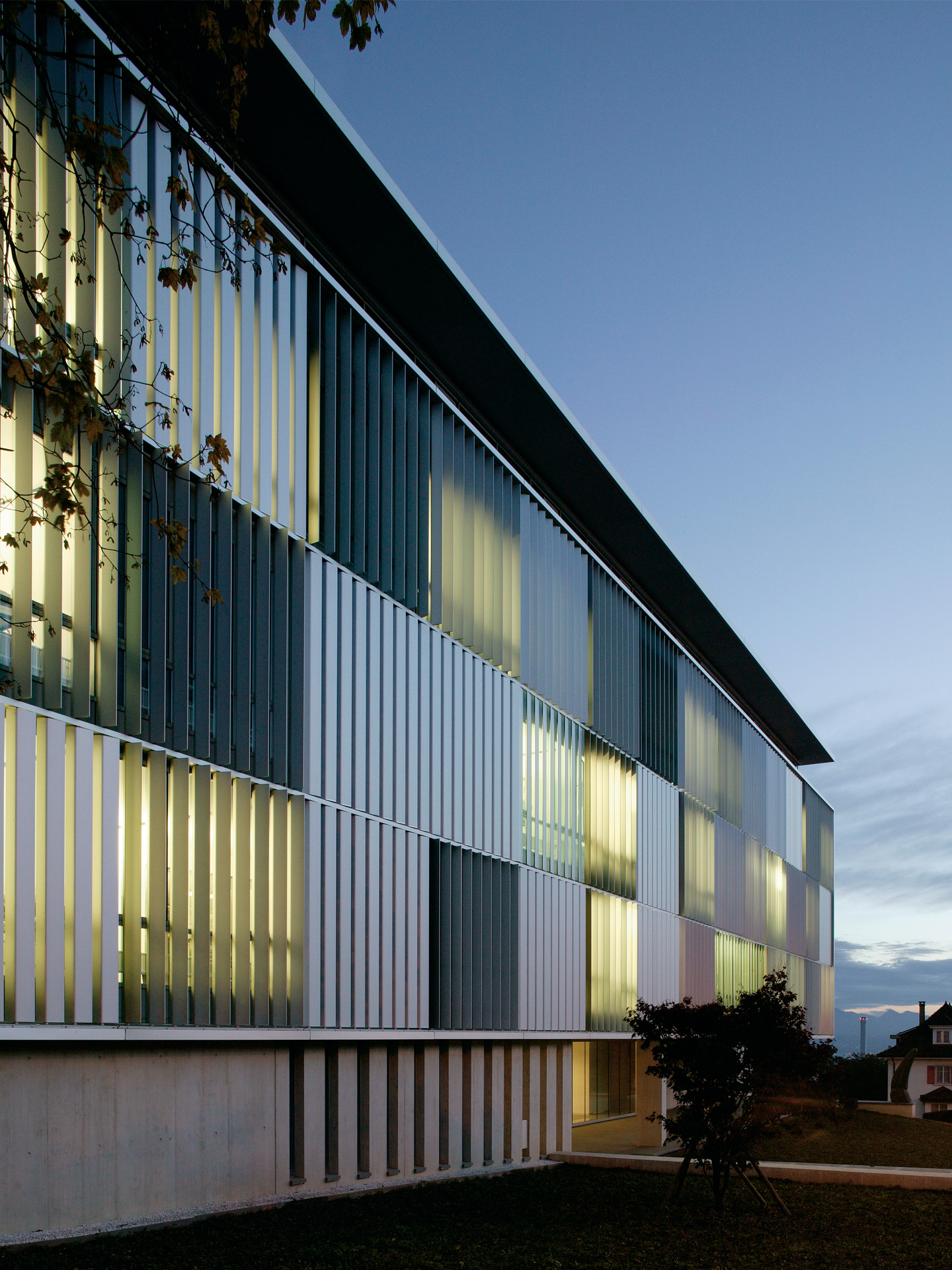

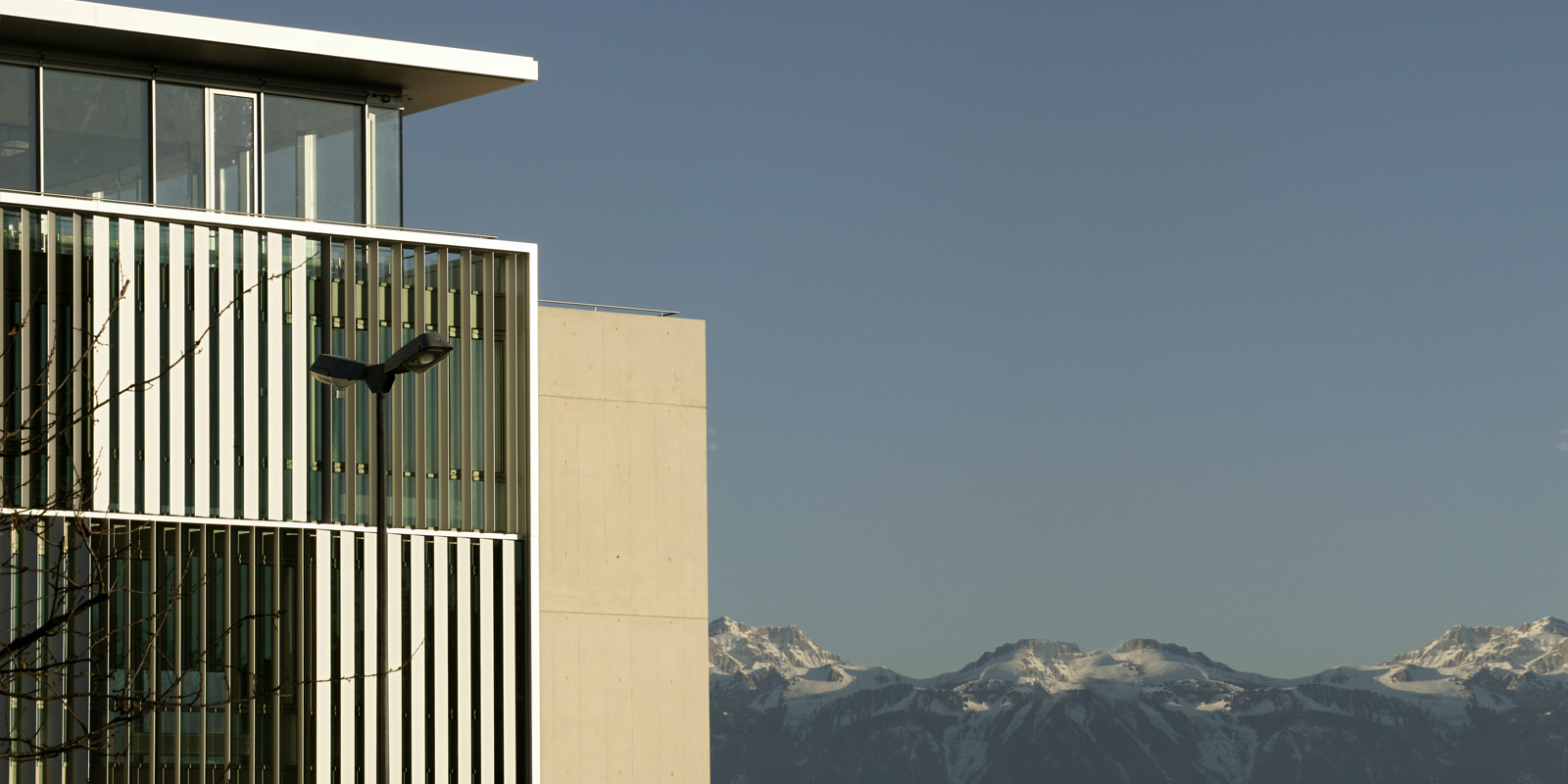

This building is located at the outskirts of the city of Lausanne, along one of its main access roads from the north. The simple volume resulting from a rather straightforward programmatic demand—the commercial leasing of office spaces—was also informed by city regulations, prescribed by the department of urban planning, that imposed the outline of the building and the construction of an attic. At ground level, the volume rests on a piloti structure to allow circulation through access porticos. Though the building presents itself from three sides as a concrete monolith, the facade towards the road is radically different. This entire elevation is composed of a glass skin protected by a series of aluminium and glass vertical brise-soleil. The shades differ from similar wing shaped elements in that only two thirds of each element is opaque; the remaining third is of a tinted glass. When totally closed, the brise-soleil still allow some light in and visual contact with the exterior. Being controlled independently by the users of each corresponding inside space, the position of each set of shades varies, creating a movement within the facade. The alternation of aluminium and glass and the resulting play of light and shadows also contribute to animate this side of the building. The rest of the volume is treated in exposed concrete using white cement with aggregates made from a yellow stone found in the Swiss Juras Mountains.
